Flexible Modular
Showcase System

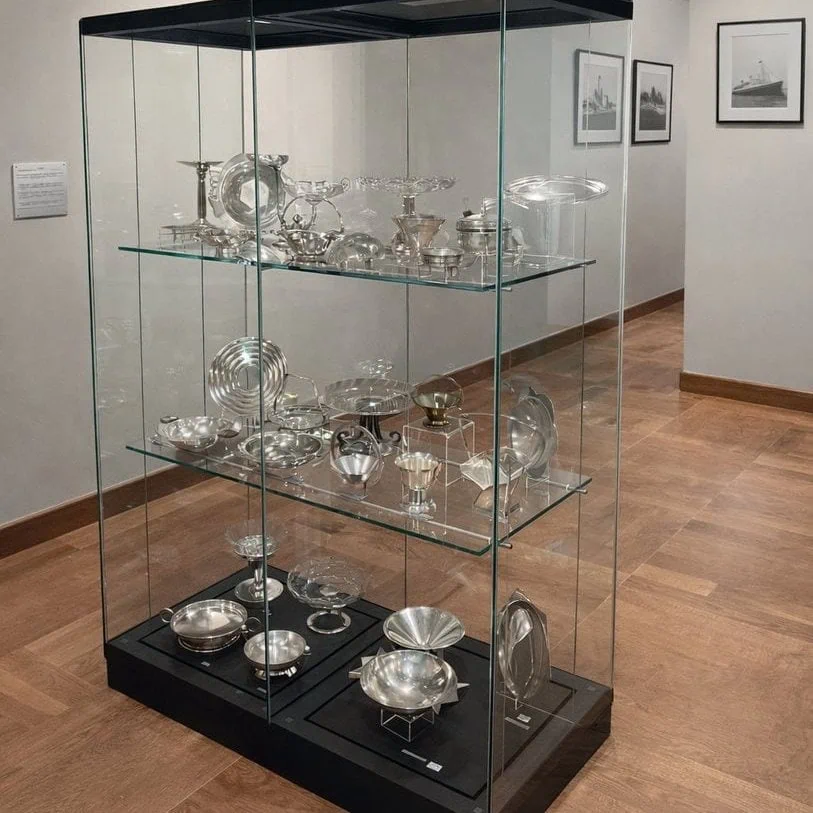

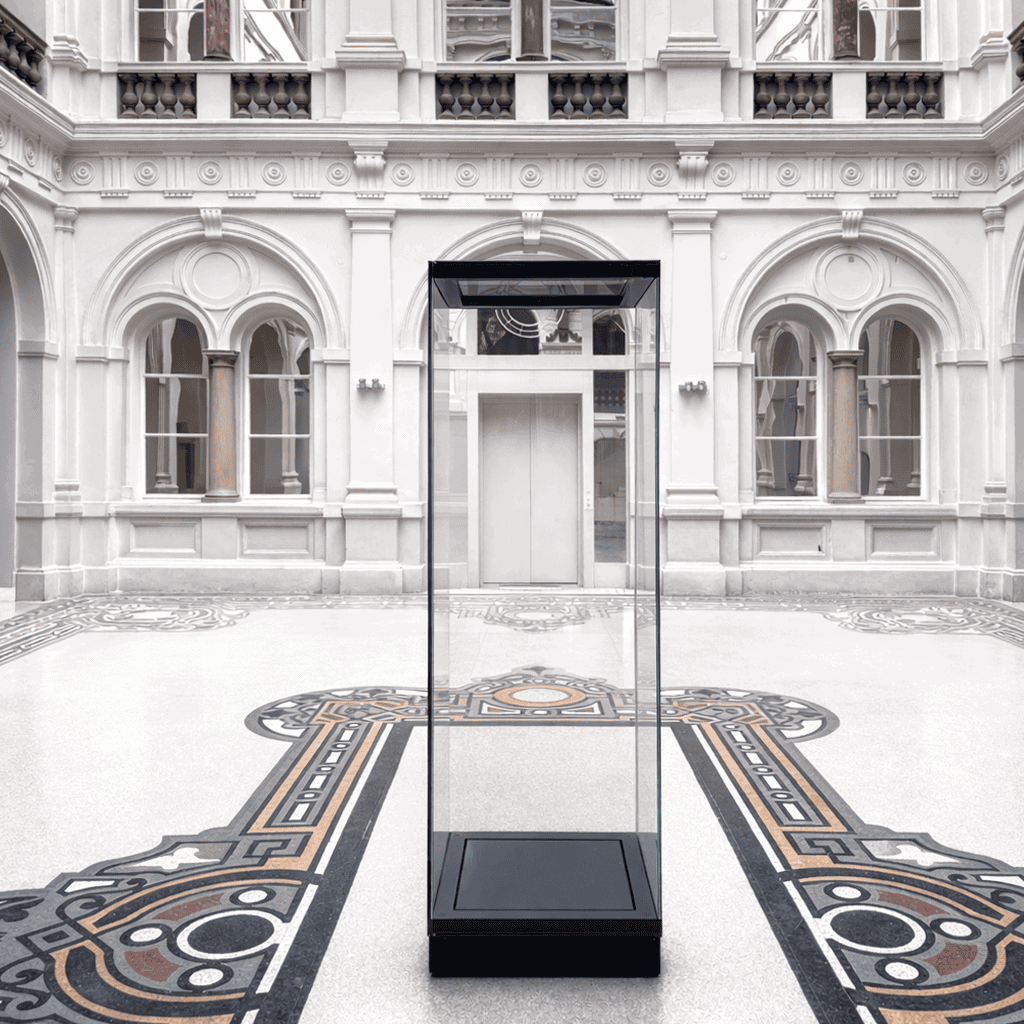

COMBO is our new modular museum showcase system, designed for elegant single or multi-module display arrangements. Its clean aesthetic is paired with high conservation performance, including passive climate control and a very low air exchange rate. Each module can be fitted with optional lighting and shelving to suit the object and curatorial concept perfectly. Flexible, robust and easy to handle, COMBO offers museums and heritage a sophisticated and scalable display solution.

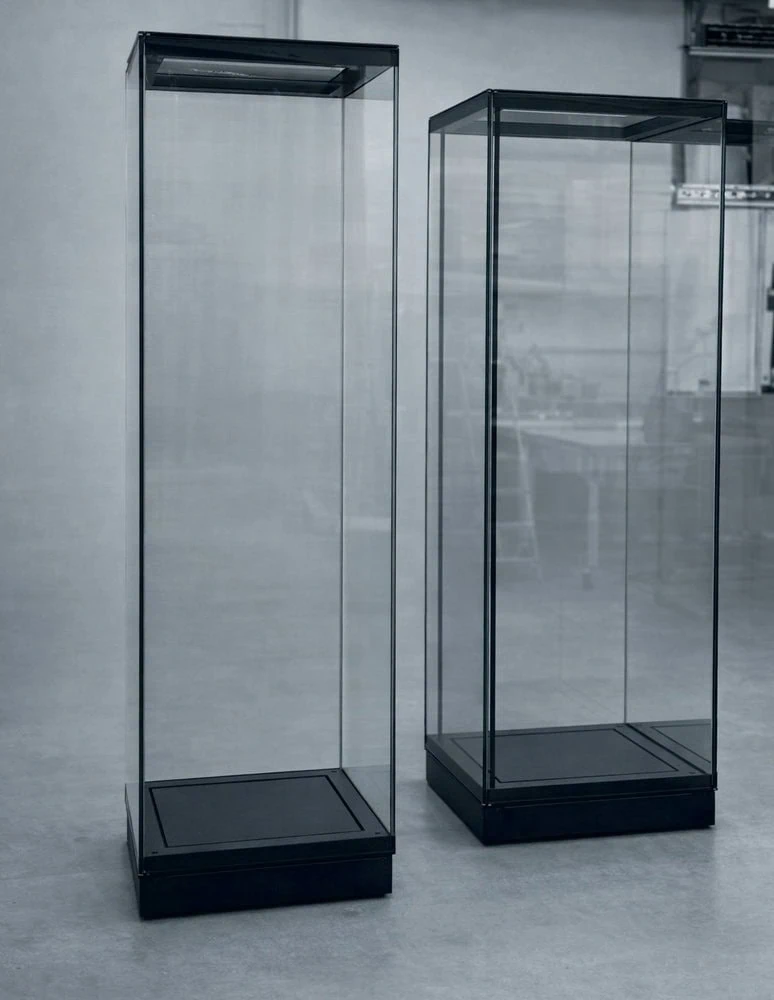

Overview COMBO Modular Case
Module dimension: 90 x 90 x 210 cm

Glass parameters: Glass 55.4 (11,5mm) thickness, 4 x PVB films: 5 mm glass / 1,52 mm PVB / 5 mm glass
As an option 66.4 (13,5) thickness, 4 x PVB films: 6 mm glass / 1,52 mm PVB / 6 mm glass

Standard:

Hinged door
0,1 AER
Passive climate control

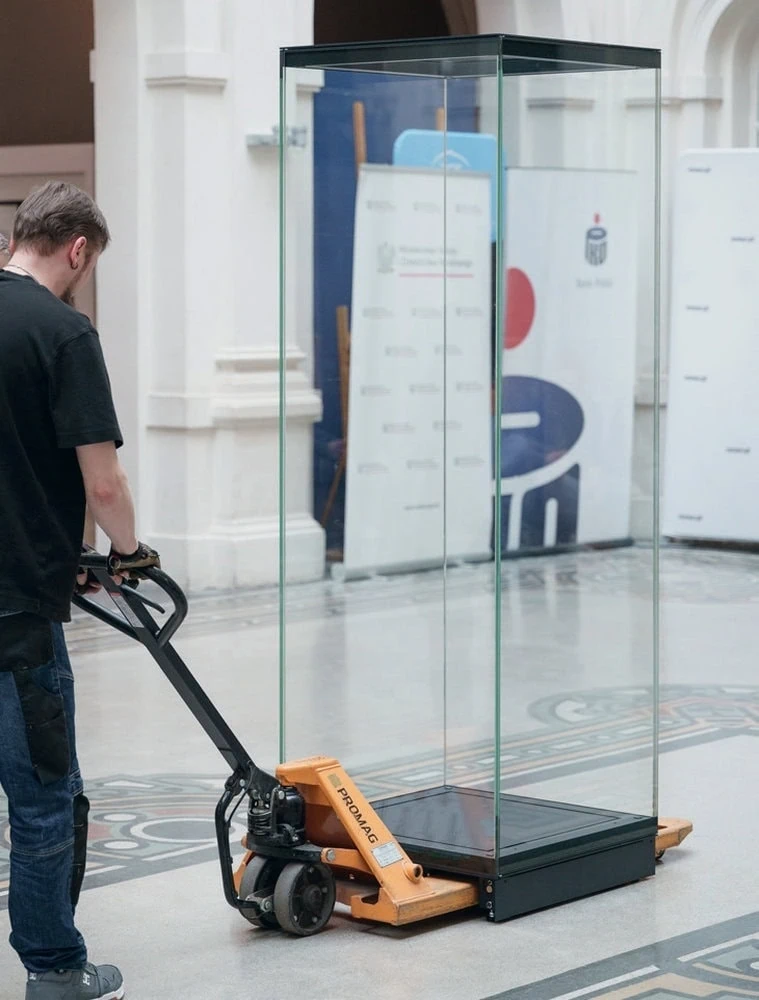

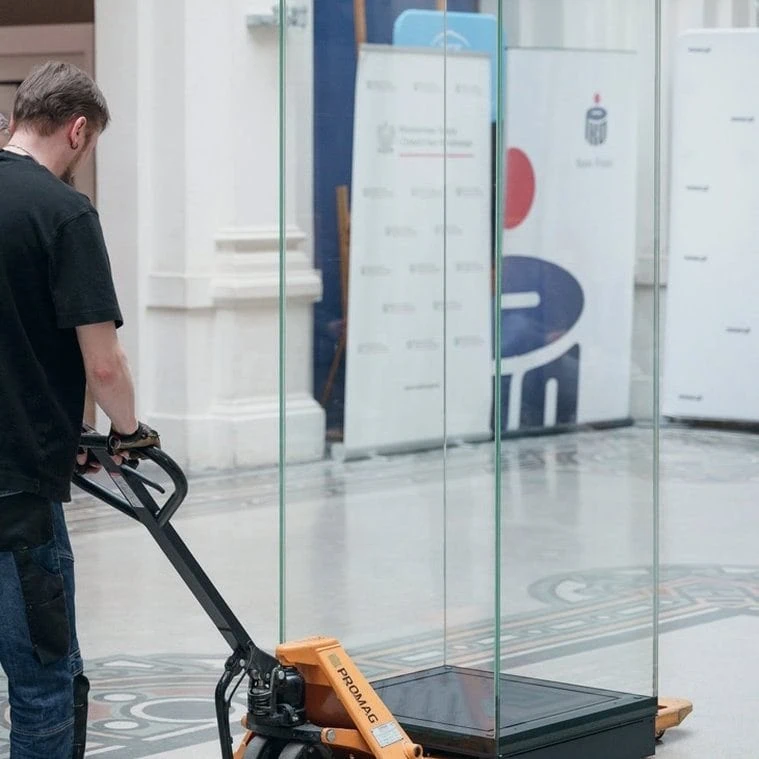

movable with pallet jack

Options:

Lighting (top and/or bottom or on sides)
Shelves
Glass P6B

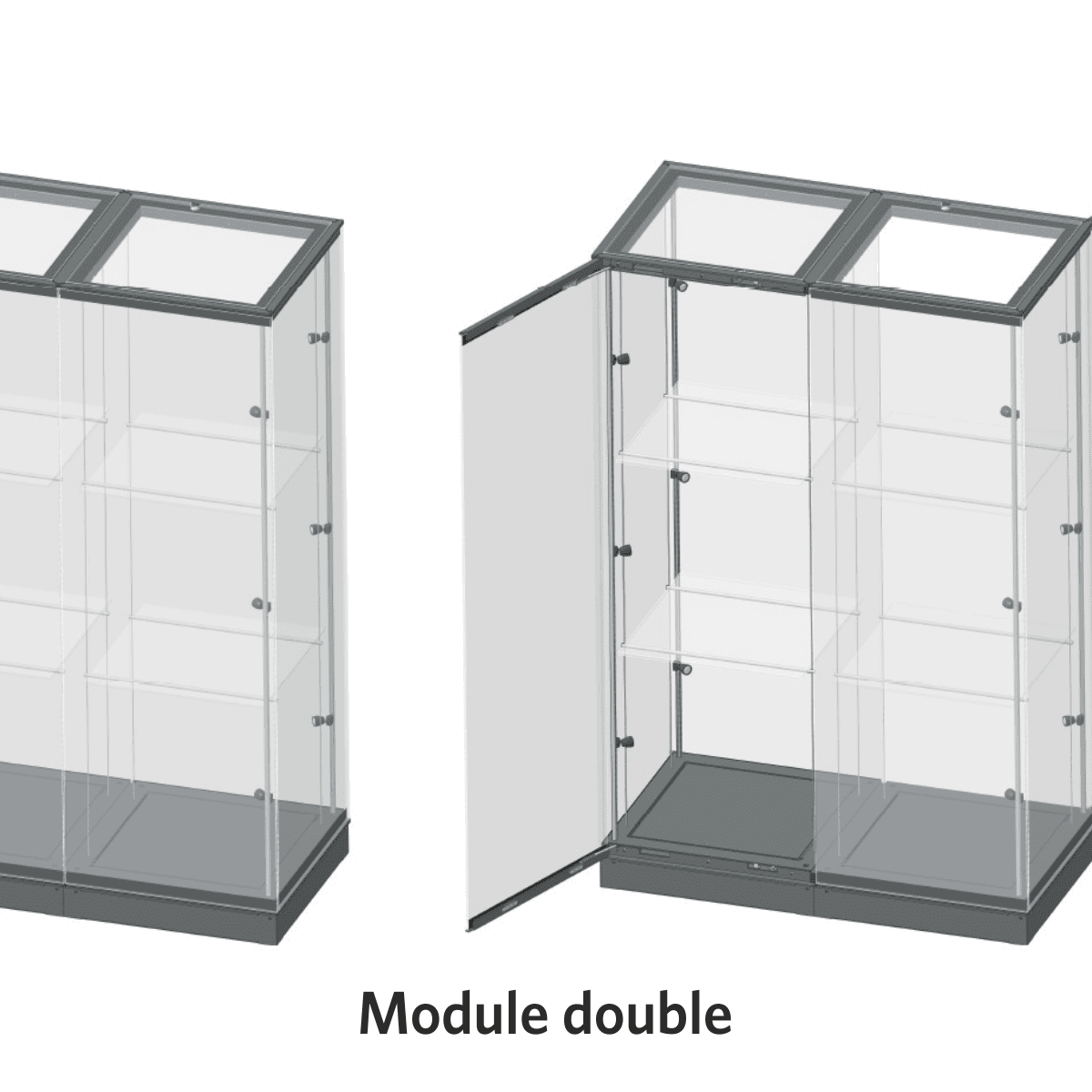

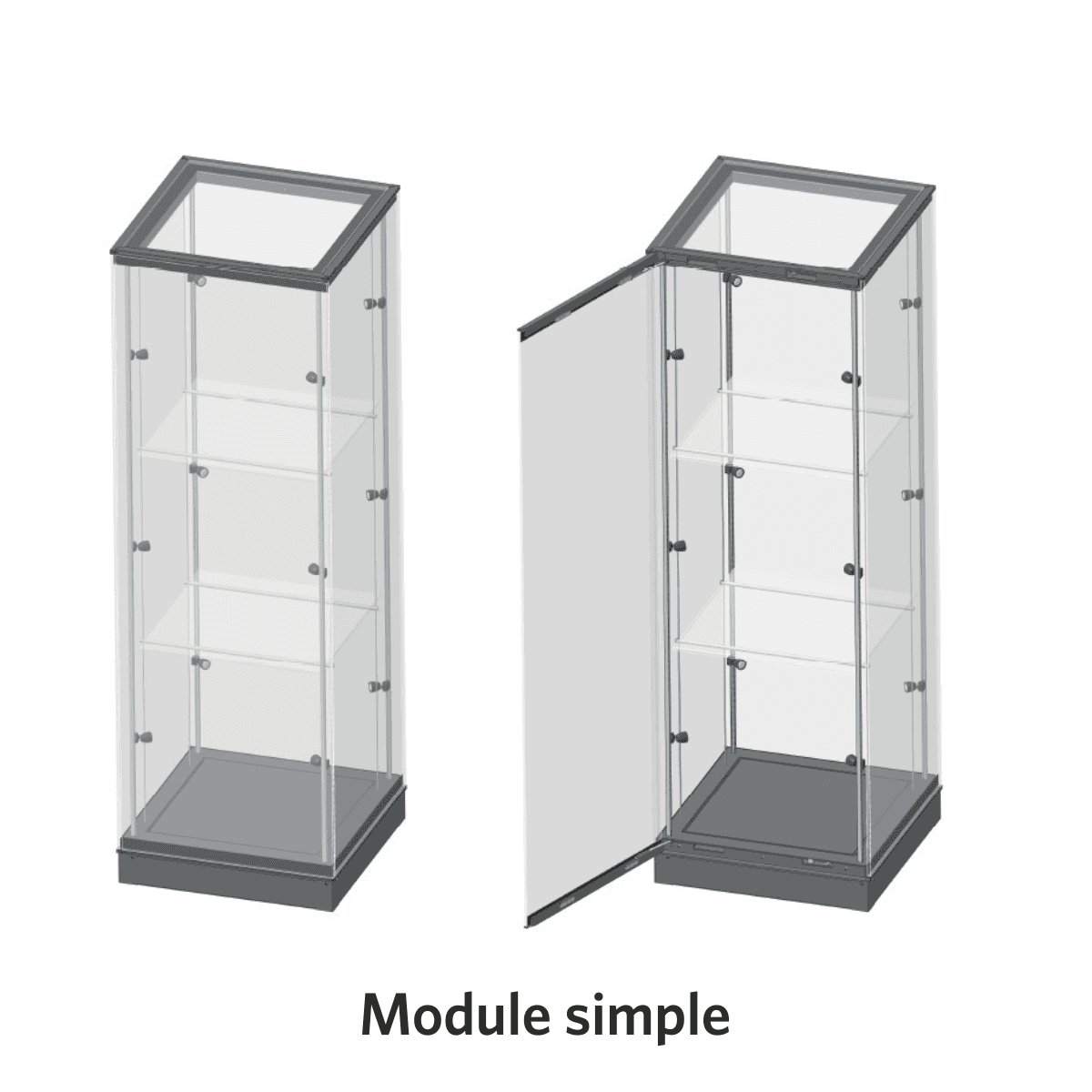

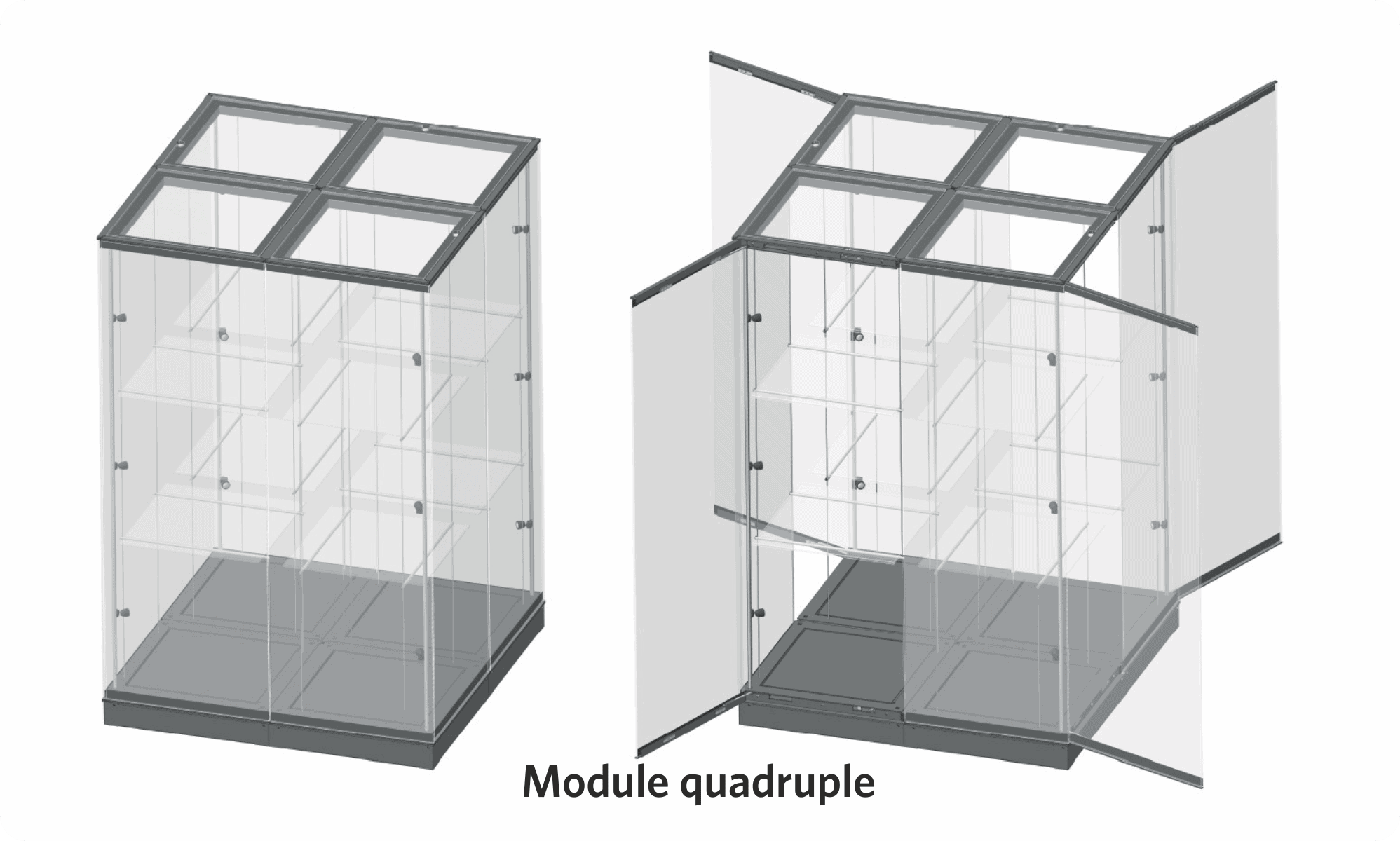

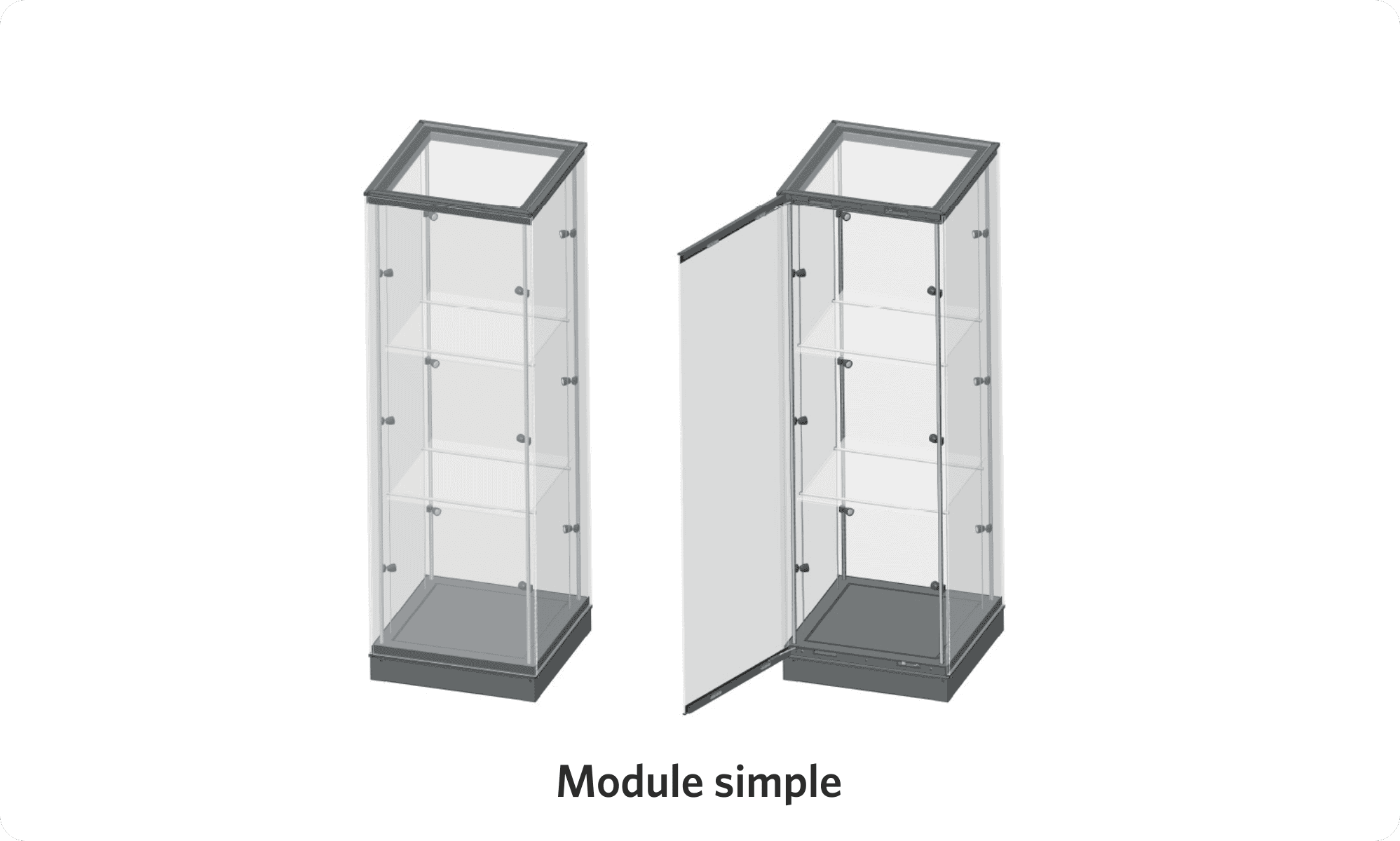

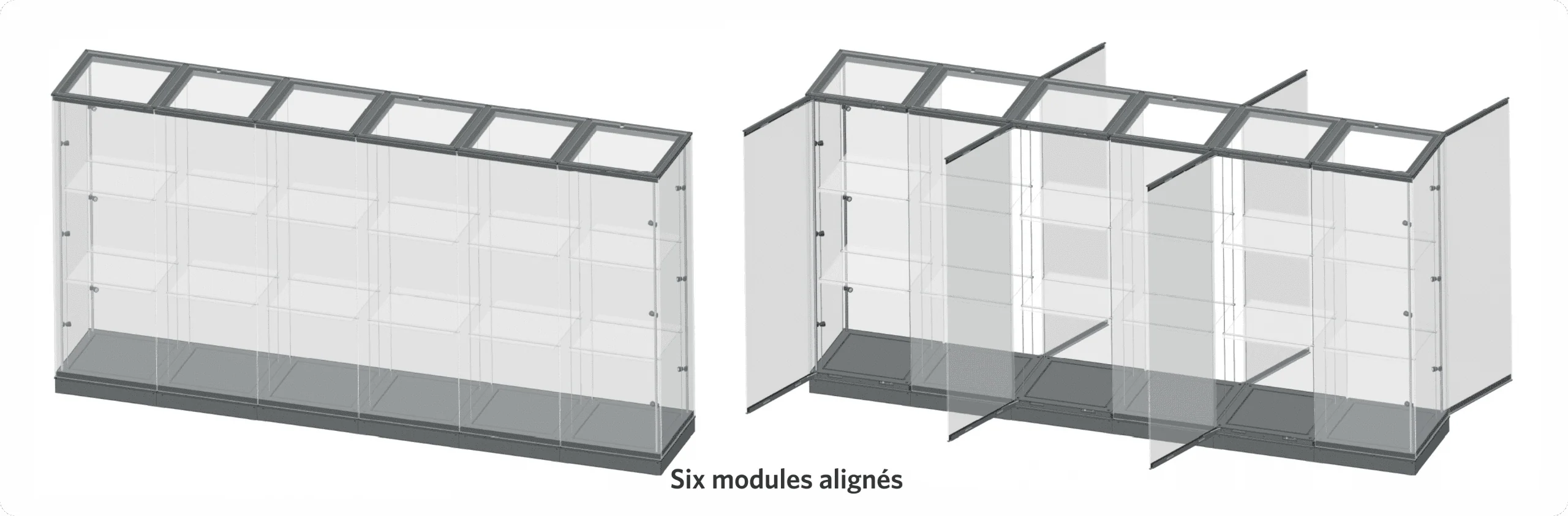

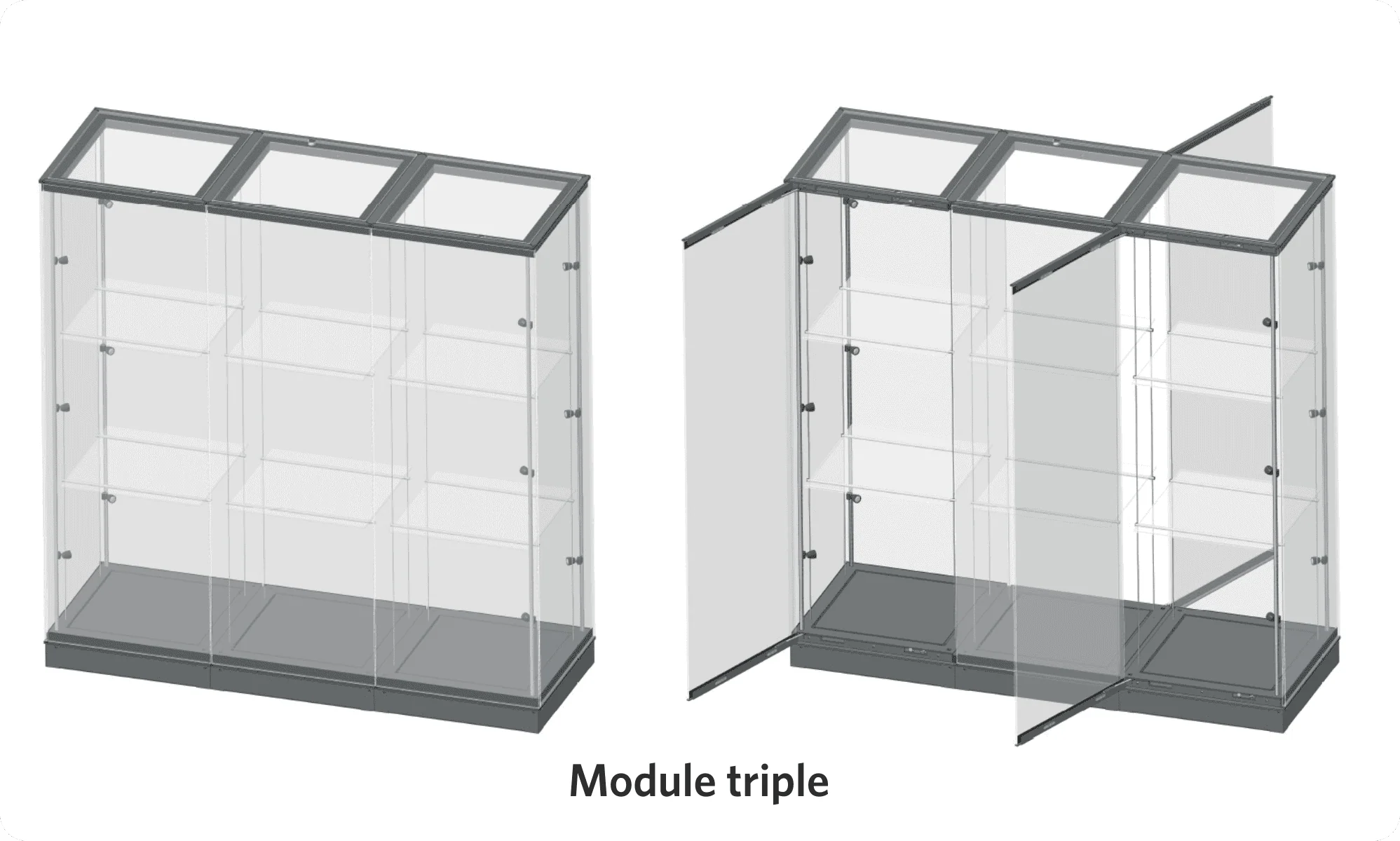

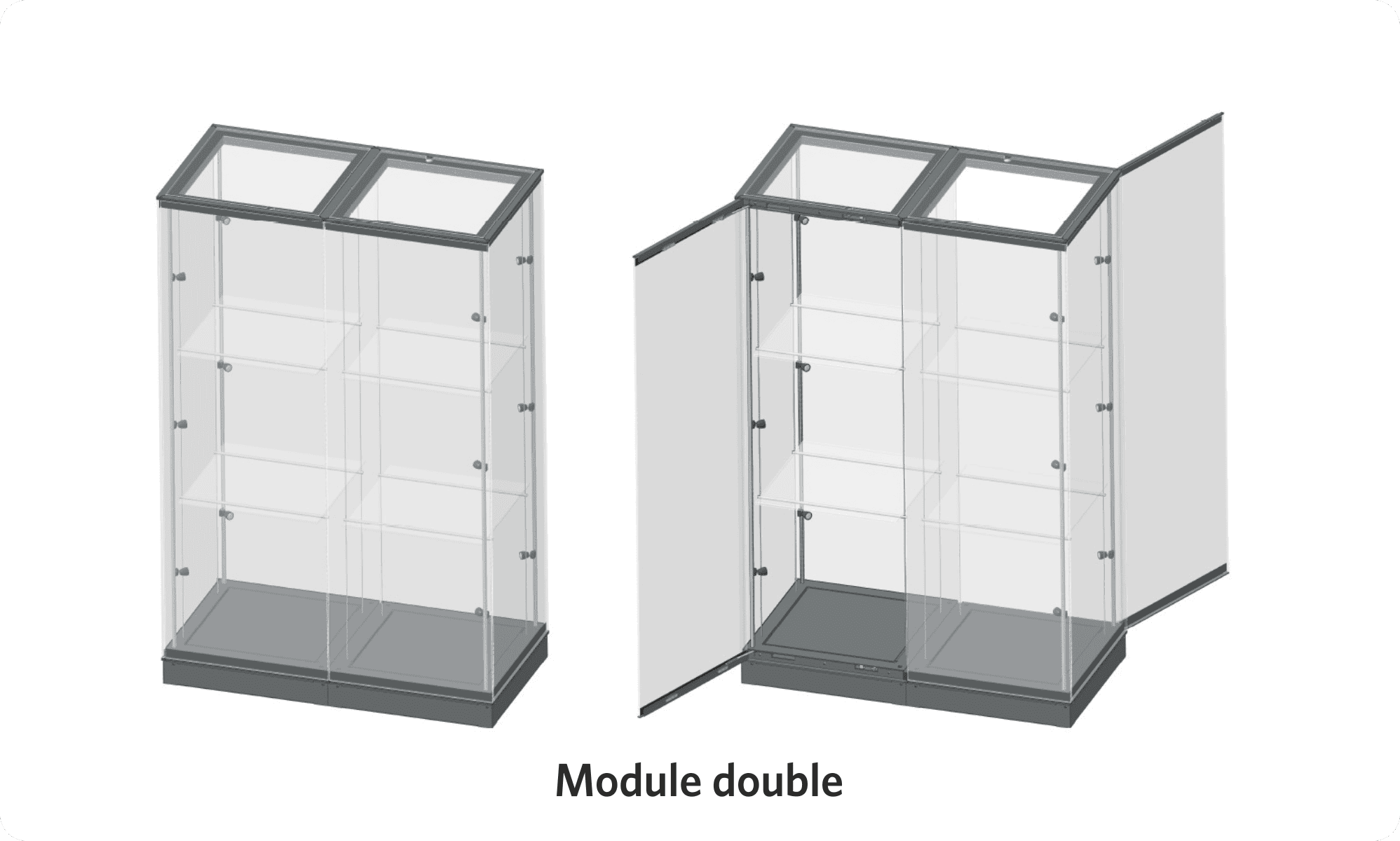

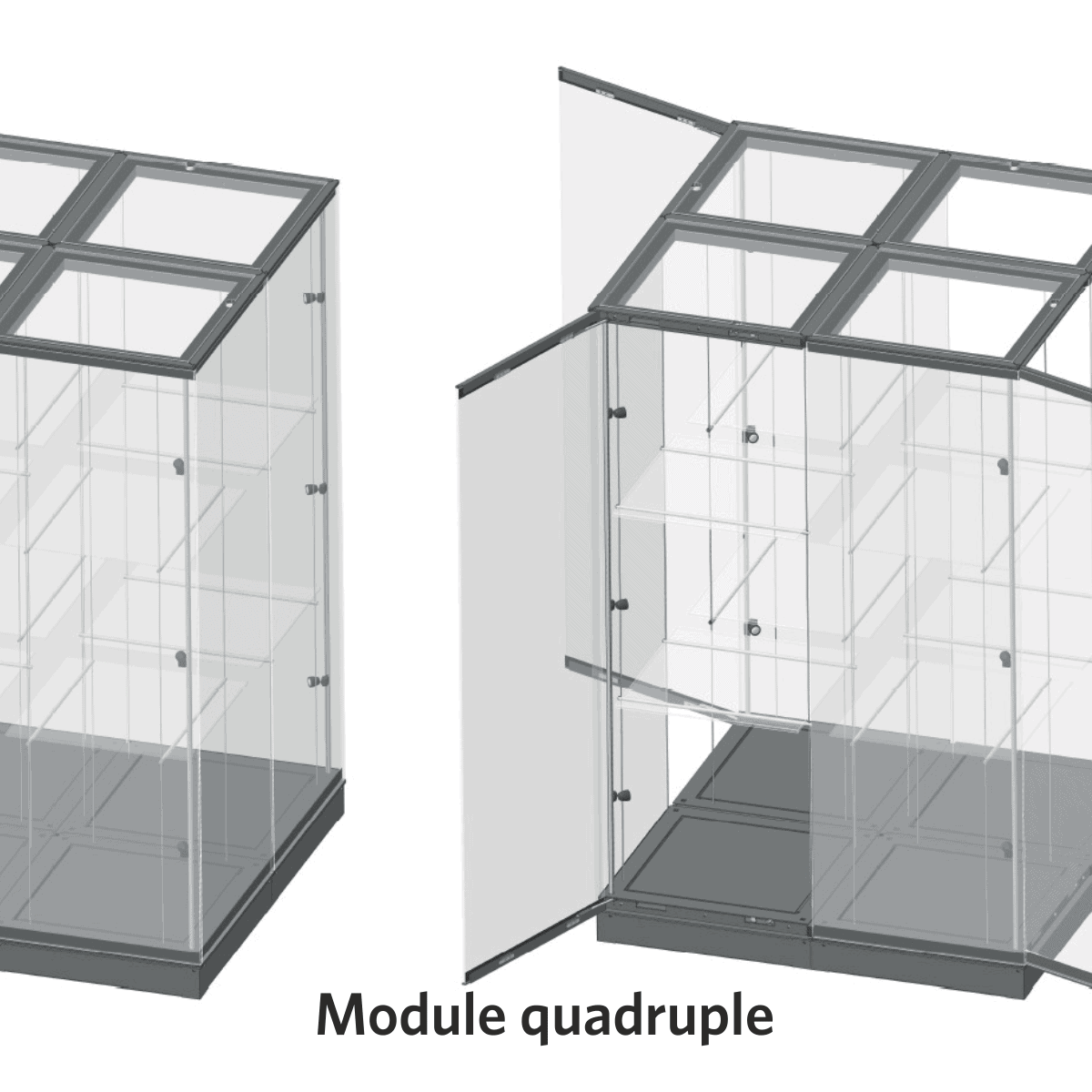

Examples of Module Configuration

The modular showcase allows for construction of complex showcases in various shapes, composed of multiple modules. Each module can be independently equipped with internal lighting and shelving.

Much more module configurations possible…

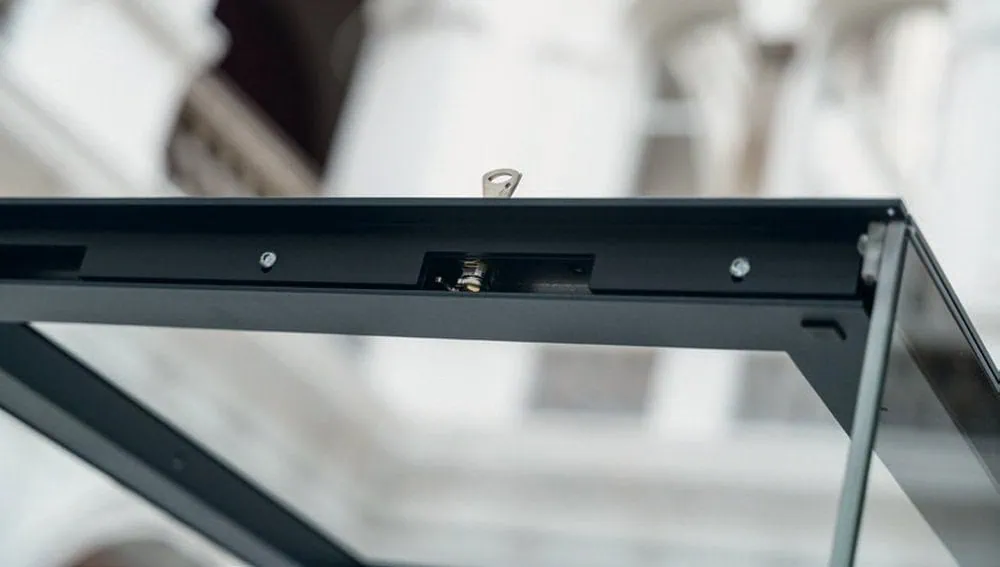

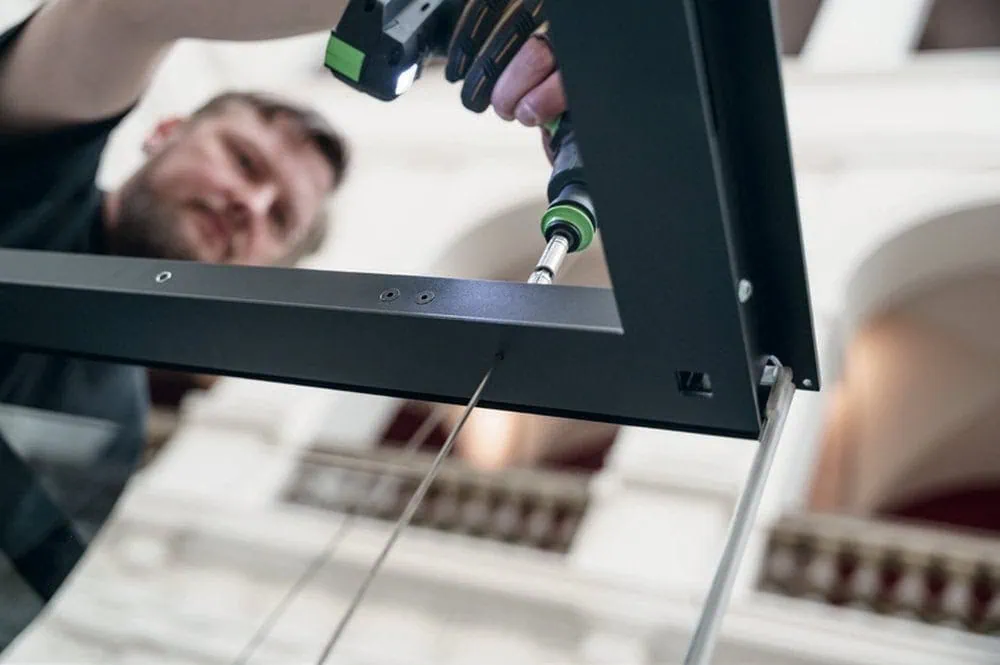

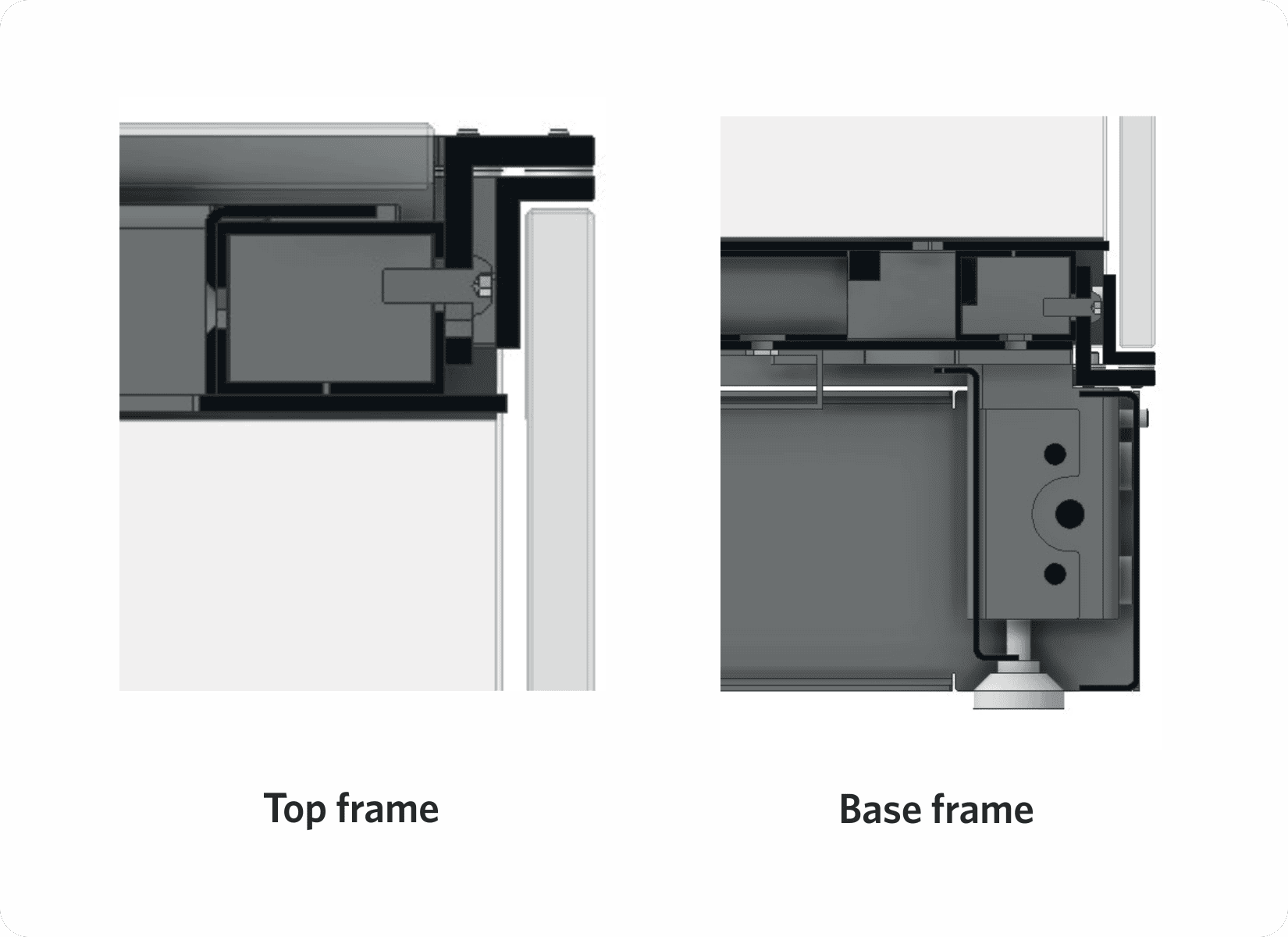

Specification of the frame

Aluminum and steel custom-made profiles, cut using a CNC laser machine, are assembled into one piece mainly by gluing and bolting. All metal elements are powder-coated in the requested RAL colour.

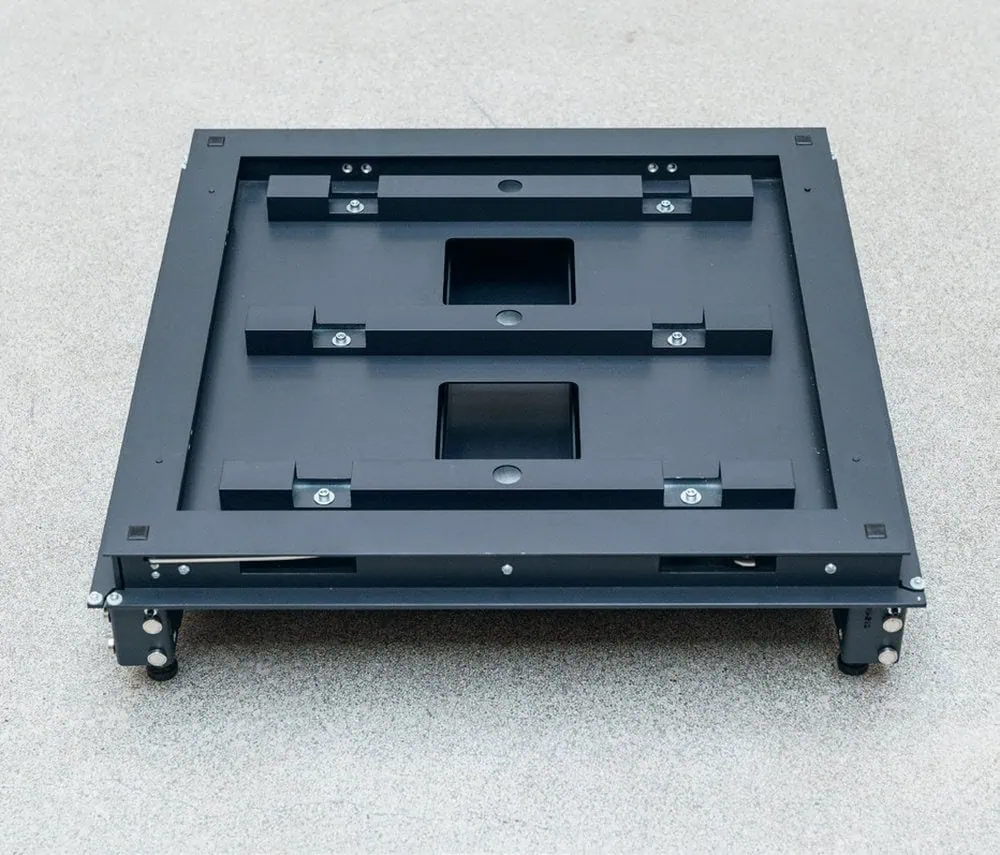

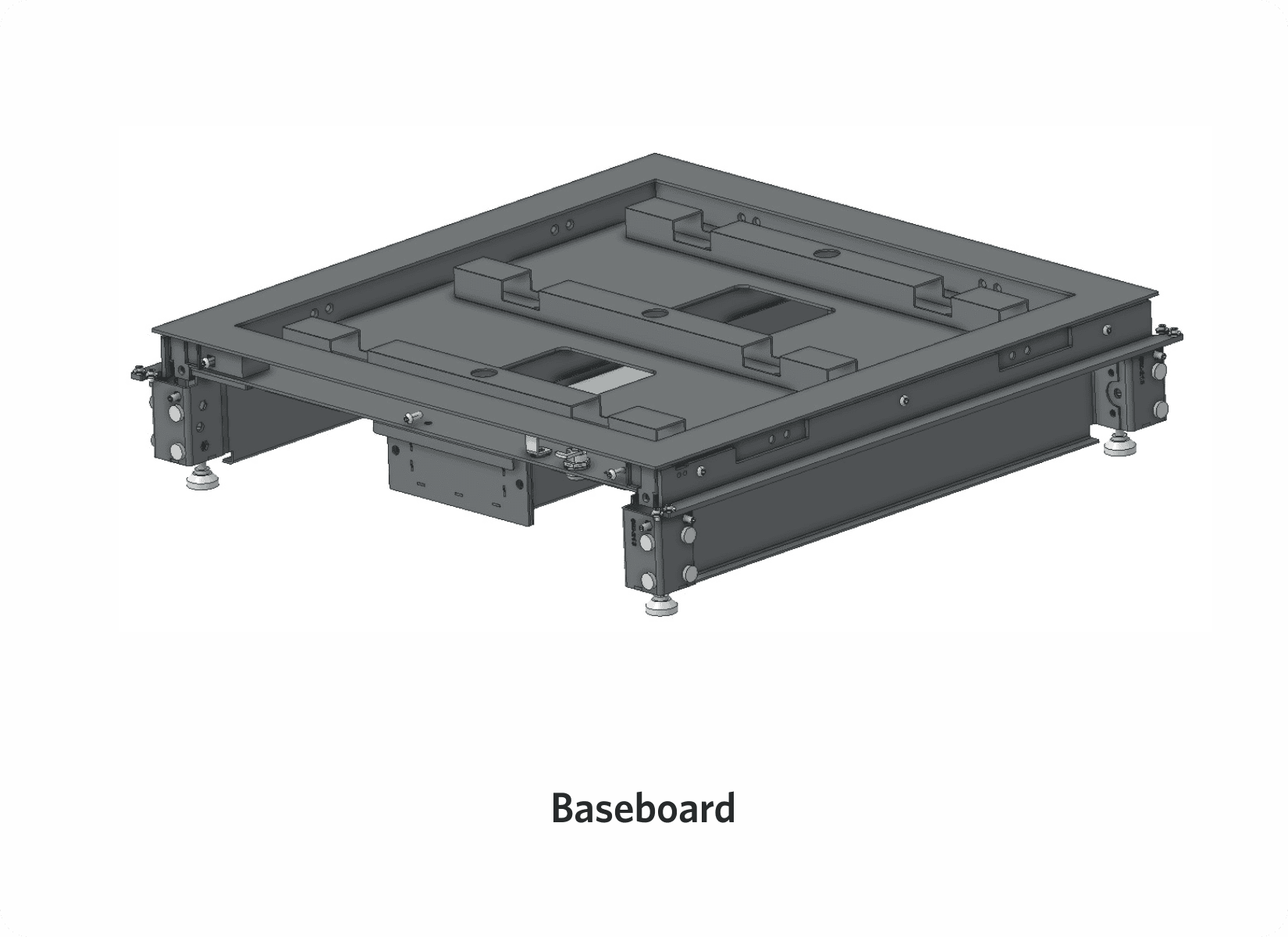

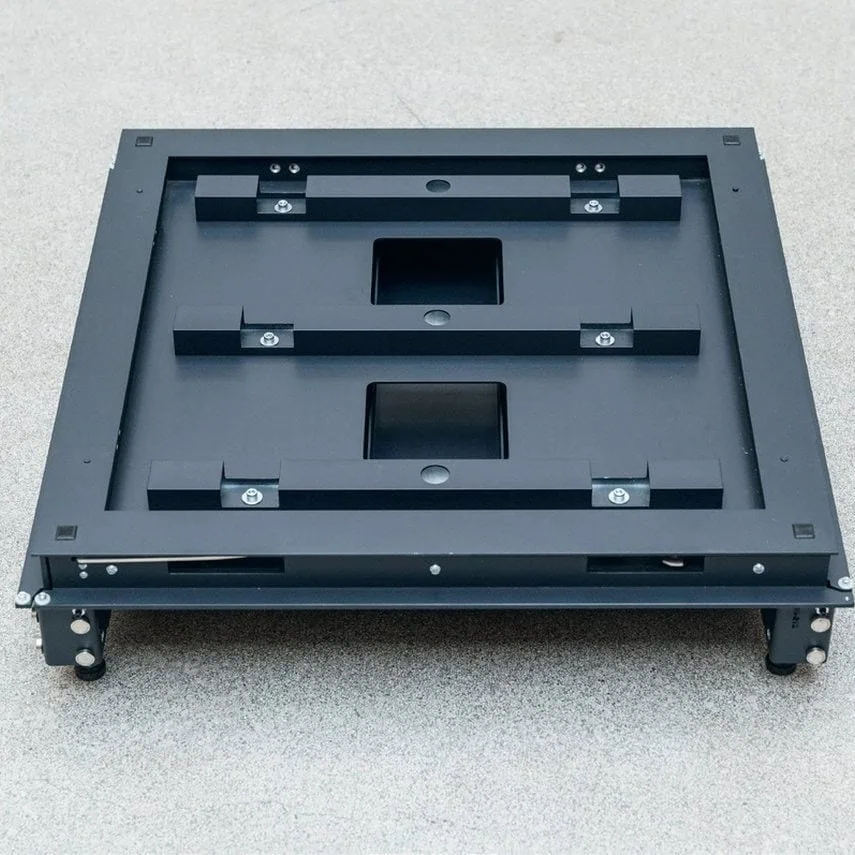

Specification of baseboard

Single-segment element made of metal/aluminum structural profiles, powder-coated in requested RAL color.

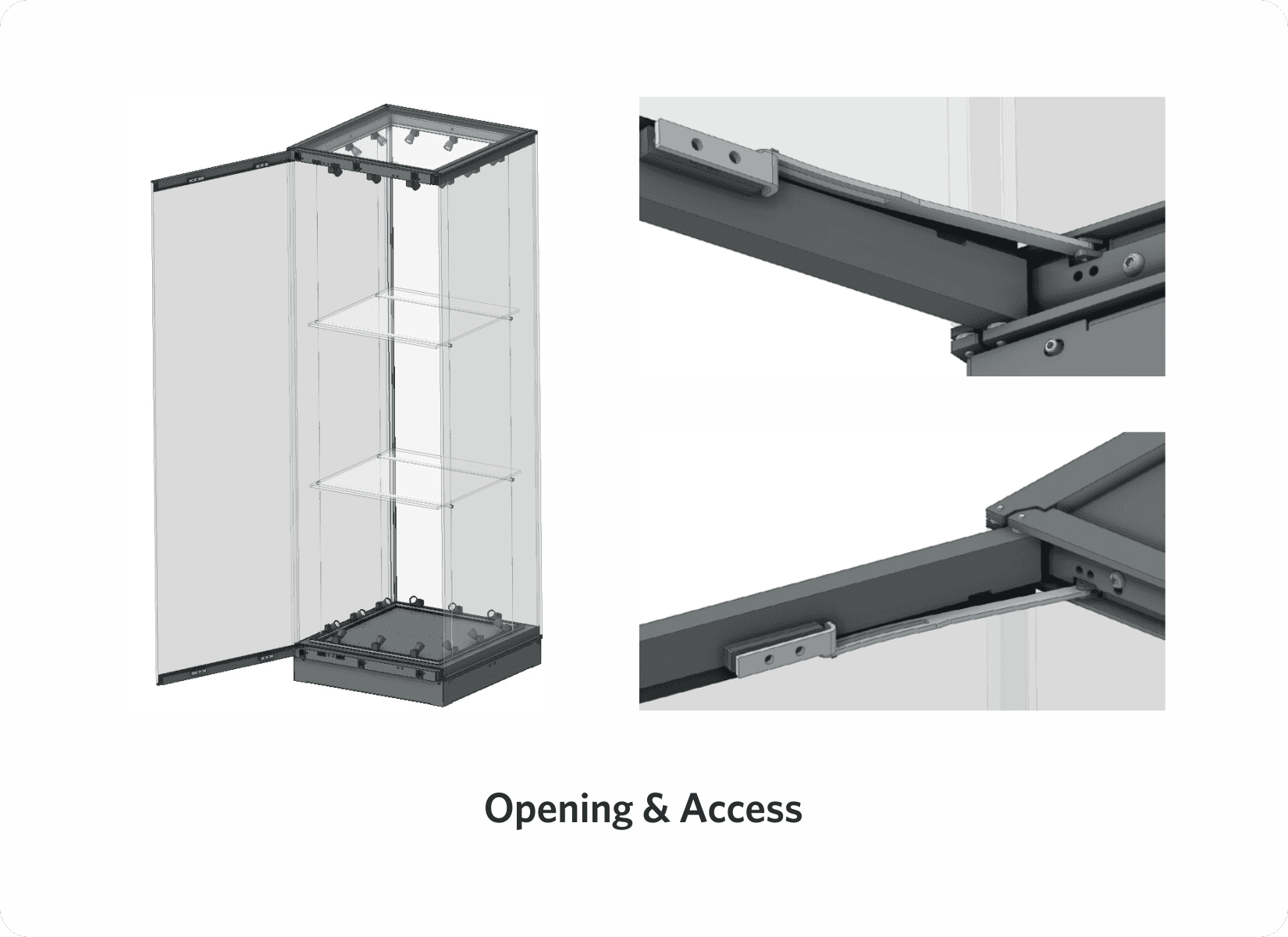

Opening & Access

Hinged door, French-style opening, with opening restrictor. Opening angle of 110°. Left- or right-hand opening available on request.

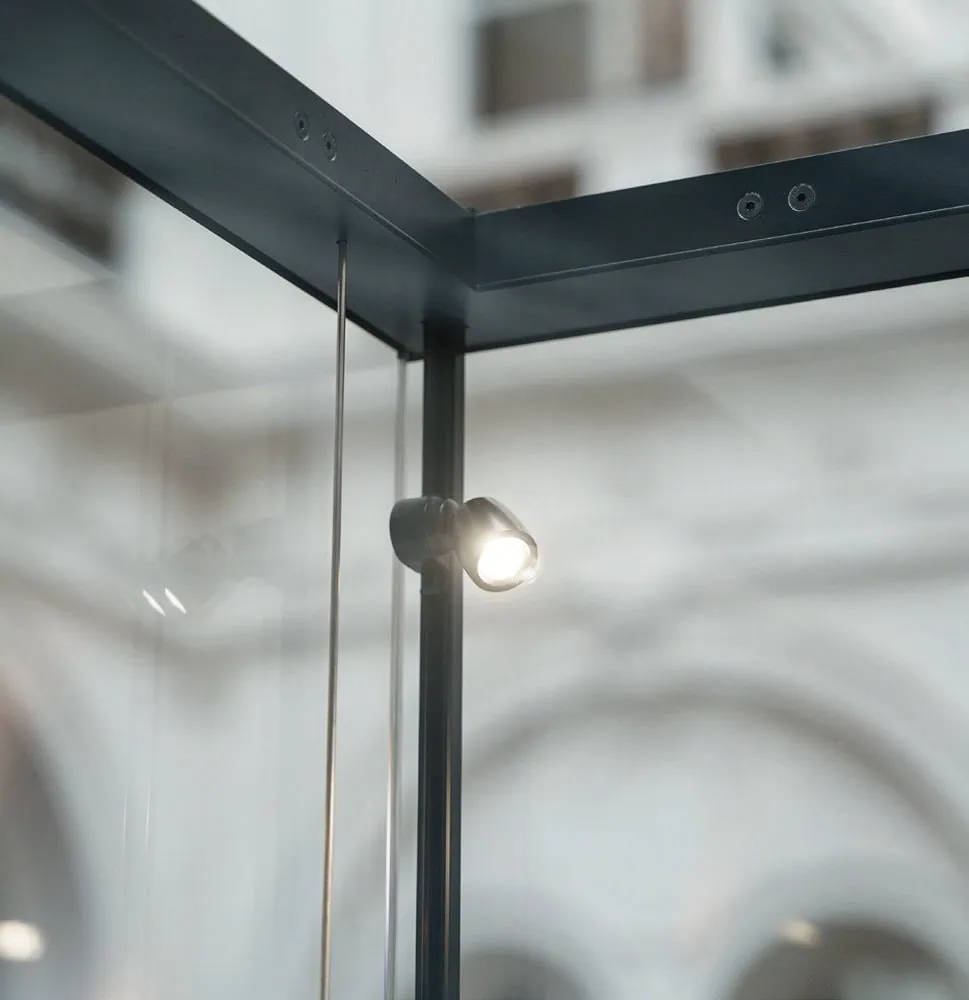

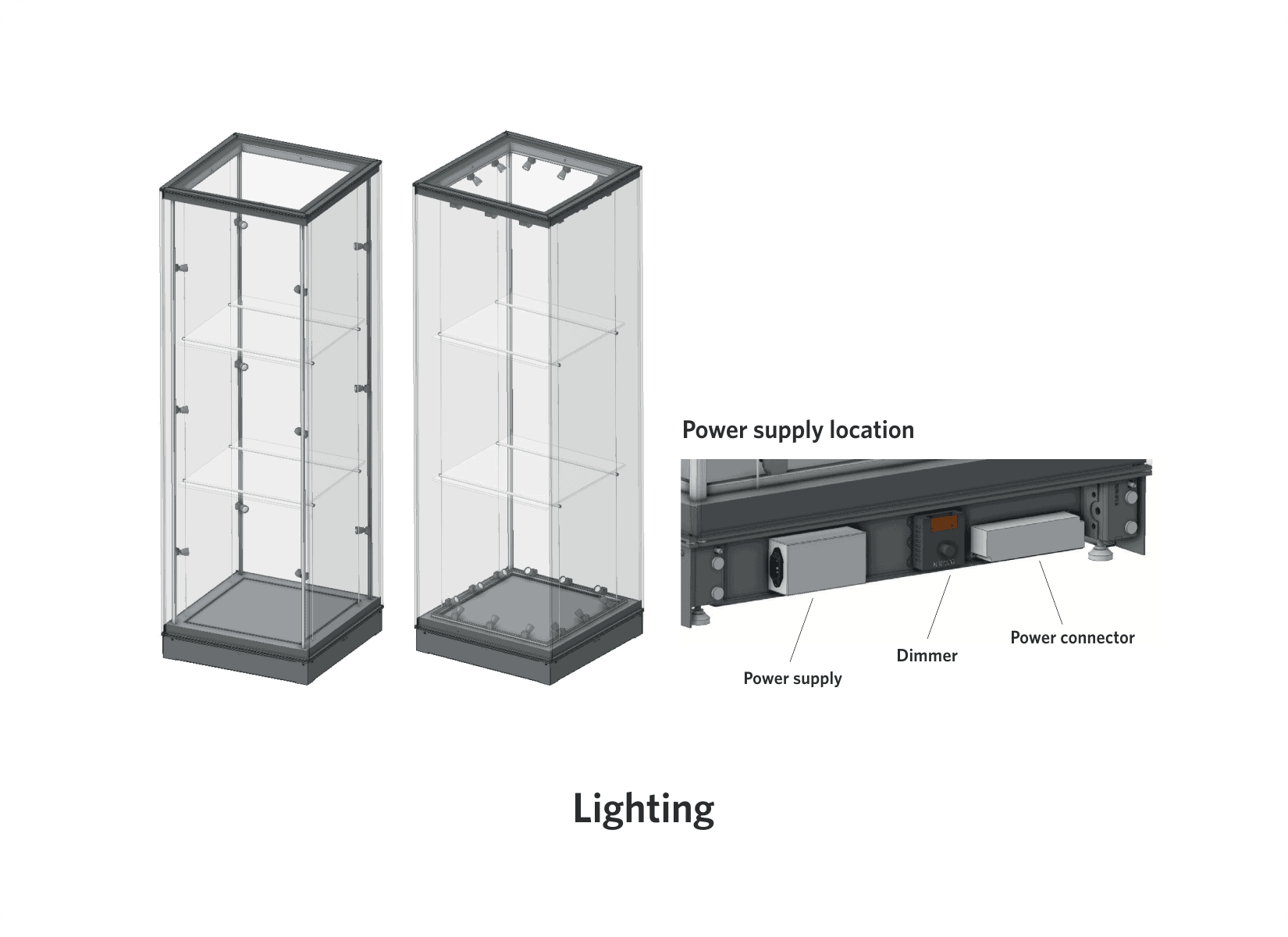

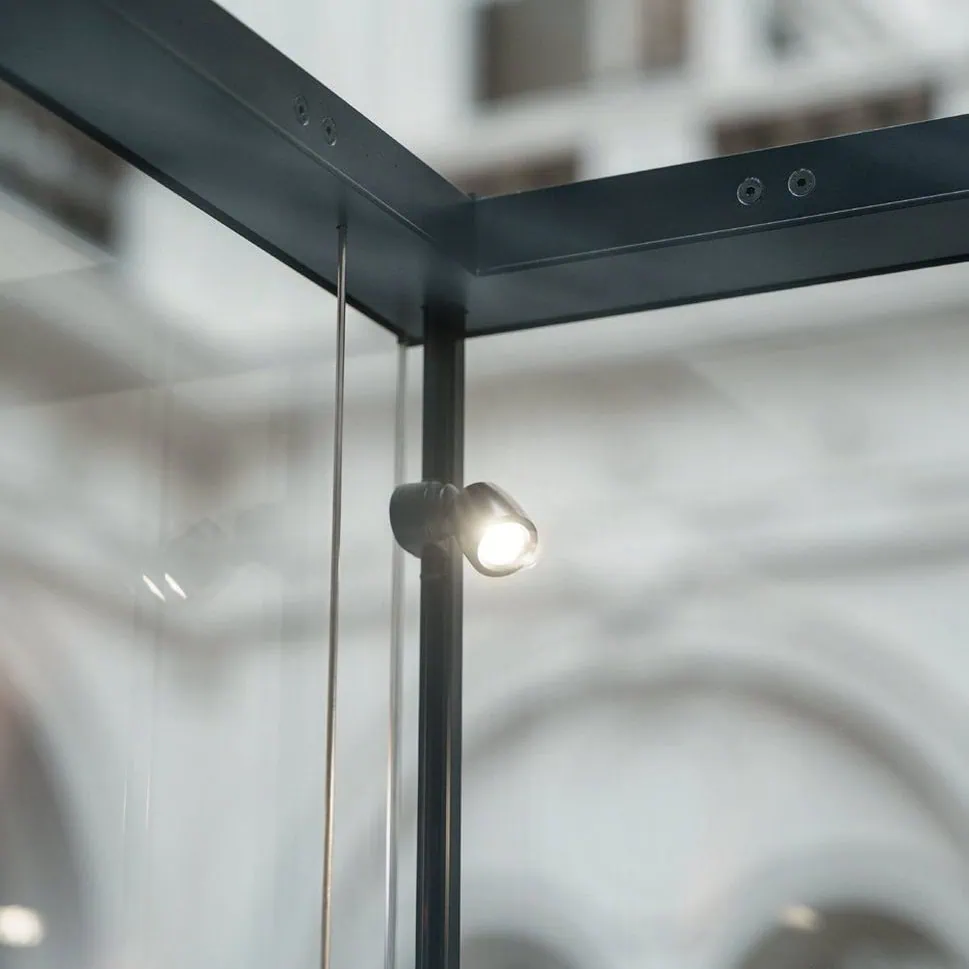

Lighting

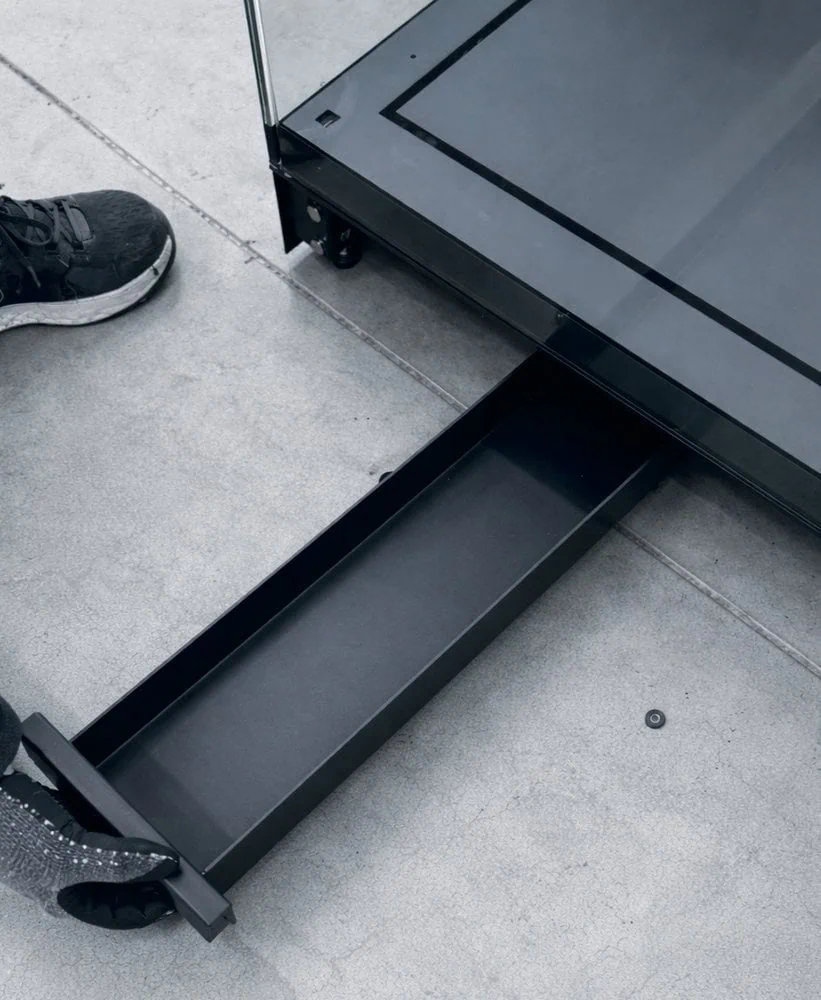

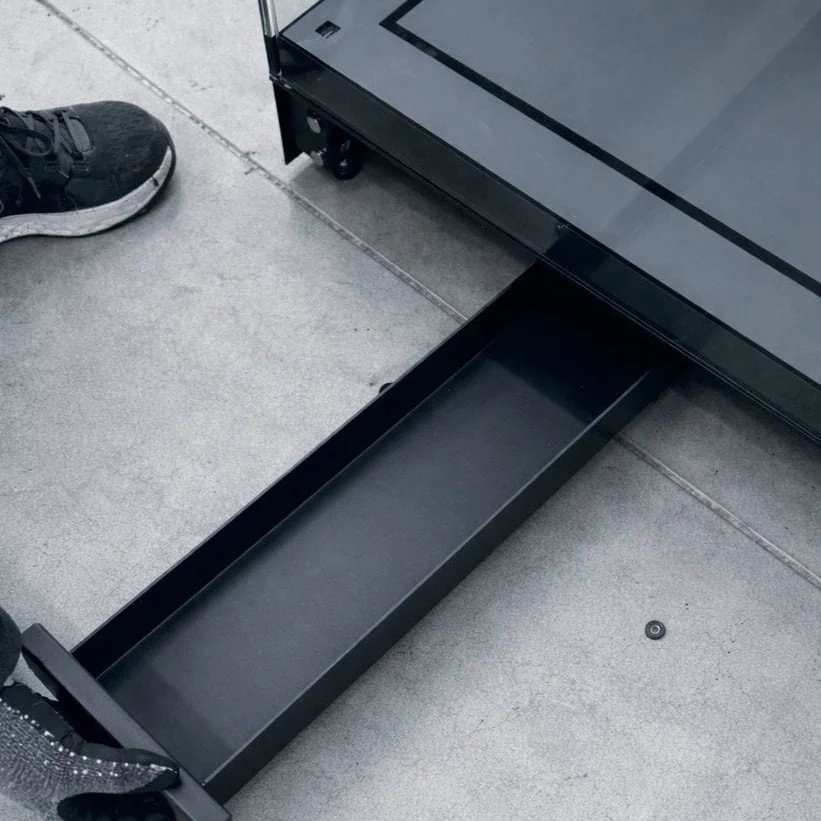

Each independent module features a manual dimmer and a base-integrated electrical compartment, accessible via a removable plinth without opening the door.

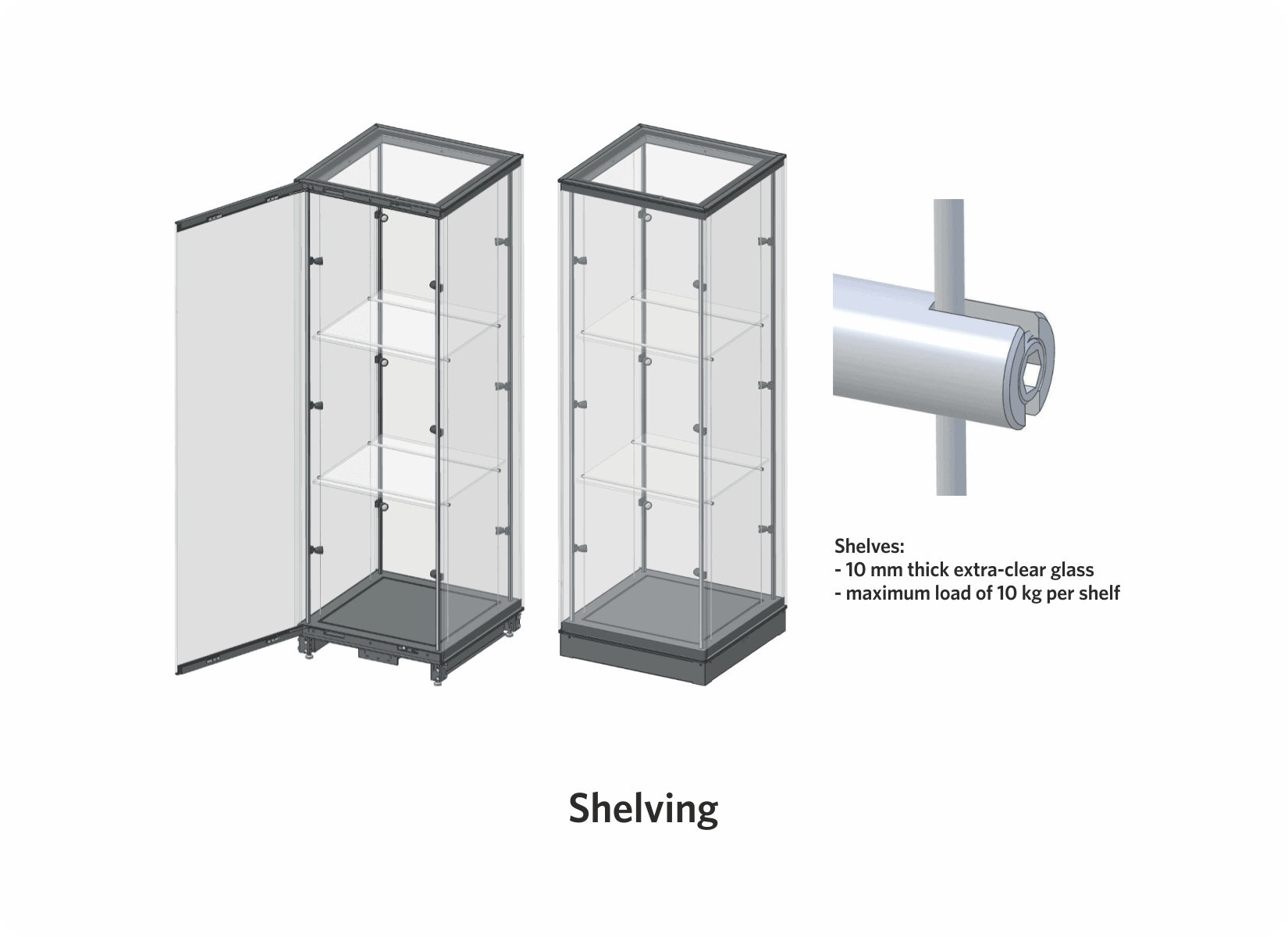

Shelving

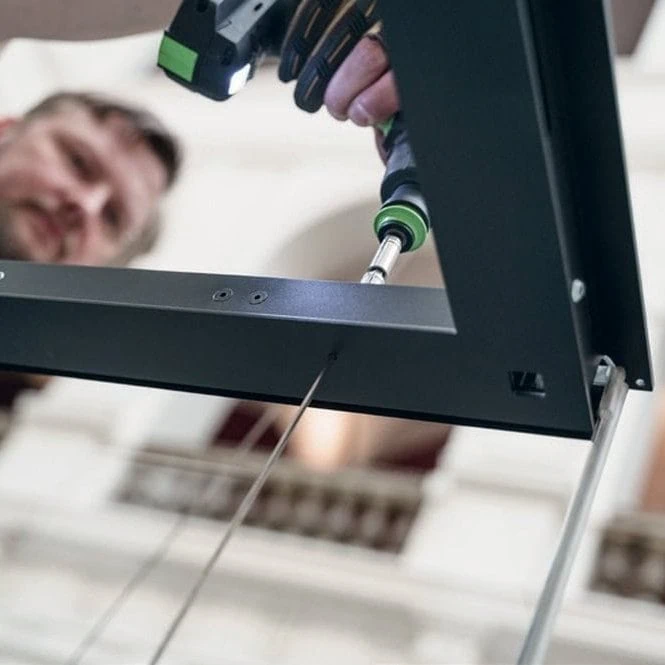

The shelving units can be fitted with two glass shelves as an option. The system consists of taut stainless steel cables fitted with clamps to prevent any sideways swaying.
