TRADITIONAL SHOWCASES
EXCEL LINE display cabinets
Do you need a traditional showcase fast?
For us, at FRANK AMERICA, this is not a problem. In addition to our tailor-made FRANK system, we offer our EXCEL display cabinets in the most popular design. These are perfect for a straightforward presentation of your collections, shop items, or other commercial uses.
The EXCEL line is equipped with all basics required for a professional exhibition.

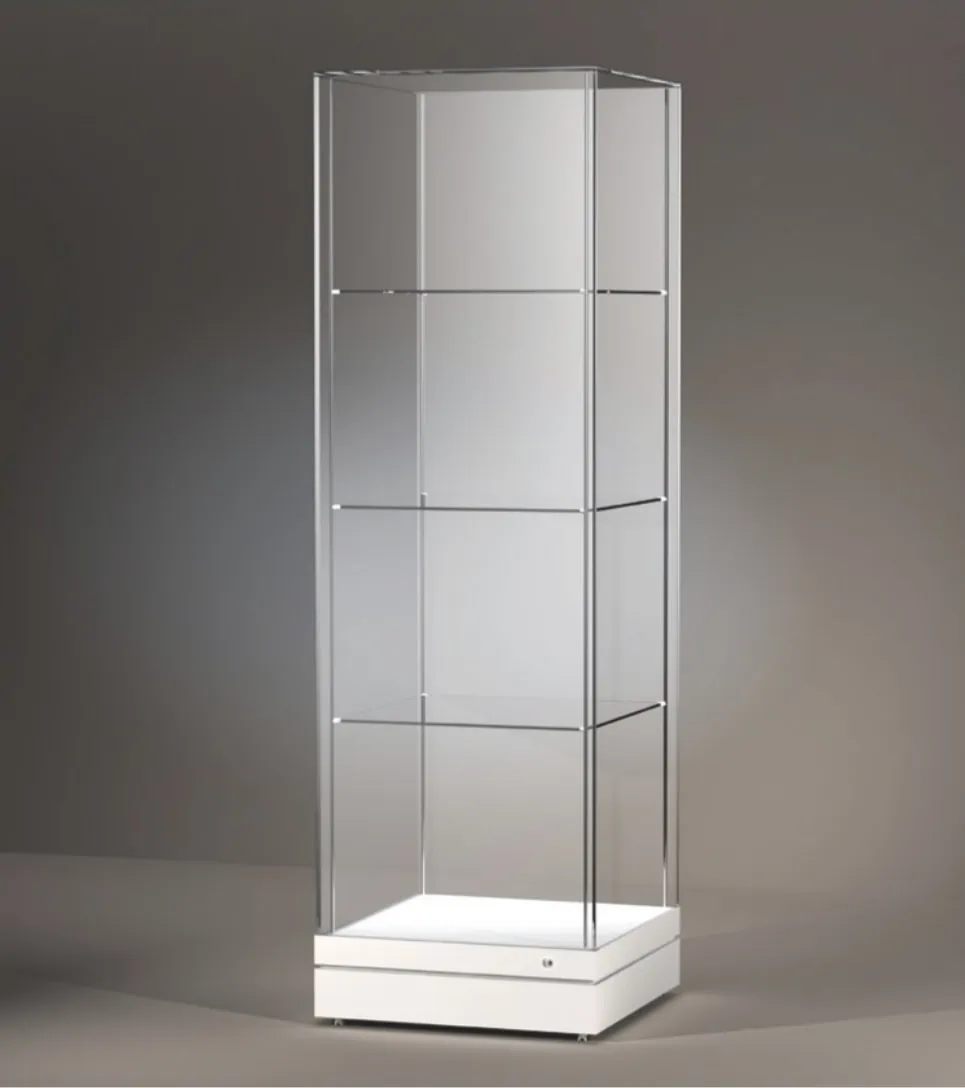

EXCEL LINE F – FREESTANDING CASES
The EXCEL Line F – freestanding display case series is constructed of 8 mm thick glass panels and is the most requested case in the standard series. Maximum visibility is ensured by mitered and polished edges. A user-friendly design makes opening and closing the rotating glass door exceptionally easy. These cases are equipped with a precision-formed silicone gasket.
SECURITY IS KEY
Two simultaneously locking security cylinder locks protect the display case from burglary.
STANDING STRAIGHT
The case has a rigid supporting frame with leveling capability guaranteeing stability. The glazing frame base connection provides an elegant visual effect.
YOU HAVE THE CHOICE
The surface is painted in RAL 9002, off-white matt. On request, custom colors are available according to the RAL scale. The EXCEL Line F has a shelving option: three glass shelves made of 8 mm thick float glass, freely adjustable and supported by stainless-steel rods.
DIMENSIONS
standard: 24“x 24“x 75“ / 610 x 610 x 1905 mm
46“x 24“x 75“ / 1220 x 610 x 1905 mm
possible dimensions:
height: 71“ – 86“ / 1803 – 2184 mm
width: 16“ – 55“ / 406 – 1396 mm
depth: 16“ – 55“ / 406 – 1396 mm
glass cover height: 4“ – 39“ / 101 – 991 mm
GLAZING
possible glazing: laminated safety glass
tempered safety glass
low iron / extra clear glass
antireflective glass
annealed glass
FEATURES
standard: adjustable glass shelves
optional: wooden base painted in RAL
LIGHTING
standard: lightbox with fluorescent lamps
optional: lightbox with low voltage
halogen spotlights
fiber optics lighting
light box with LED-lights
low voltage system Apollo with
halogen spots
LED lights or LED-Spotlights,
focusable
OPENING
standard: hinged door
optional: pull and slide door/slide door
SPECIALS
optional: climate control
alarm technology
wood veneer base
base with storage space
base with drawers
integrated presentation turntable
EXCEL LINE C – COLUMN CASES
The Excel Line C – column display case series provides excellent all-around visibility for your collection items. The glass top comprises 8 mm thick glass panels, with mitered and polished edges.
PERFECT SAFETY LOCK
Two flush-mounted security locks keep your items secured.
STRONG SUPPORT
The 60 mm (2.5”) high, light metal frame under the glass top provides stability. The display case base inlay is 3/4” thick and can be covered in fabric or painted. The standard color of the column surface is RAL 9002, off-white matt. We can customize your showcase color according to the RAL scale.
EASY LIFT
The case opens by simply lifting the entire glass top of the base. An electric lift system is also available as an option.
DIMENSIONS
standard: 16“x 16“x 63“ / 406 x 406 x 1600 mm
possible dimensions:
height: 36“– 78“ / 914 – 1981 mm
width: 16“– 39“ / 406 – 991 mm
depth: 16“– 39“ / 406 – 991 mm
glass cover height: 16“– 47“ / 406 – 1194 mm
base height: 16“– 47“ / 406 – 1194 mm
GLAZING
possible glazing: laminated safety glass
tempered safety glass
low iron / extra clear glass
antireflective glass
annealed glass
FEATURES
standard: base plate covered in fabric
optional: base plate painted in RAL
illuminated frosted glass base plate
LIGHTING
optional: fiber optics lighting
flexible light tubes
light box with LED-lights
light box with fluorescent lamps
low voltage system Apollo with:
low voltage halogen spotlights
LED-lights
LED-Spotlight, focusable- LED-lights
OPENING
standard: glass hood is removable
optional: the electric lift system
SPECIALS
optional: climate control
alarm technology
genuine wood veneer base
base with storage space
drawers or presentation turntable
EXCEL LINE A – ARCHIVE CASES
The EXCEL line A – archival display case series offers the ideal combination of presentation and adequate storage. Drawers and doors can be designed to suit your needs. The glass top is the key feature of this classic display case, making it a popular choice for archives and changing displays.
SECURITY INCLUDED
A security lock is mounted flush to protect your treasures.
STURDY AND RELIABLE
The EXCEL Line A is made with a rigid base and integrated glass top on a 60 mm (2,5”) high, light metal frame. The visible surfaces are painted in the standard color RAL 9002, off-white matt. The 3/4” thick display case inlay can be either painted or covered in fabric. The standard dimensions are W x D x H = 48”x 24”x 36”
CUSTOMIZE YOUR CHOICES
Varying case dimensions and custom finishes are available.
EASY TO OPERATE
The glass top is made of 8 mm thick glass panels and can be conveniently opened and closed thanks to a concealed gas spring system.
DIMENSIONS
standard: 46“x 24“x 36“ / 1220 x 610 x 914 mm
possible dimensions:
height: 20“– 47“ / 508 – 1194 mm
width: 16“– 71“ / 406 – 1803 mm
depth: 16“– 71“ / 406 – 1803 mm
glass cover height: 6“– 23“ / 152 – 584 mm
base height: 16“– 39“ / 406 – 991 mm
GLAZING
possible glazing: laminated safety glass
tempered safety glass
low iron / extra clear glass
antireflective glass
annealed glass
FEATURES
standard: base plate covered in fabric
optional: base plate painted in RAL
illuminated frosted glass base plate
hidden safety lock
LIGHTING
optional: fiber optics lighting
flexible light tubes
light box with LED-lights
OPENING
standard: piston-hinged glass hood
optional: the electric lift system
SPECIALS
optional: climate control
alarm technology
genuine wood veneer base
base with storage space

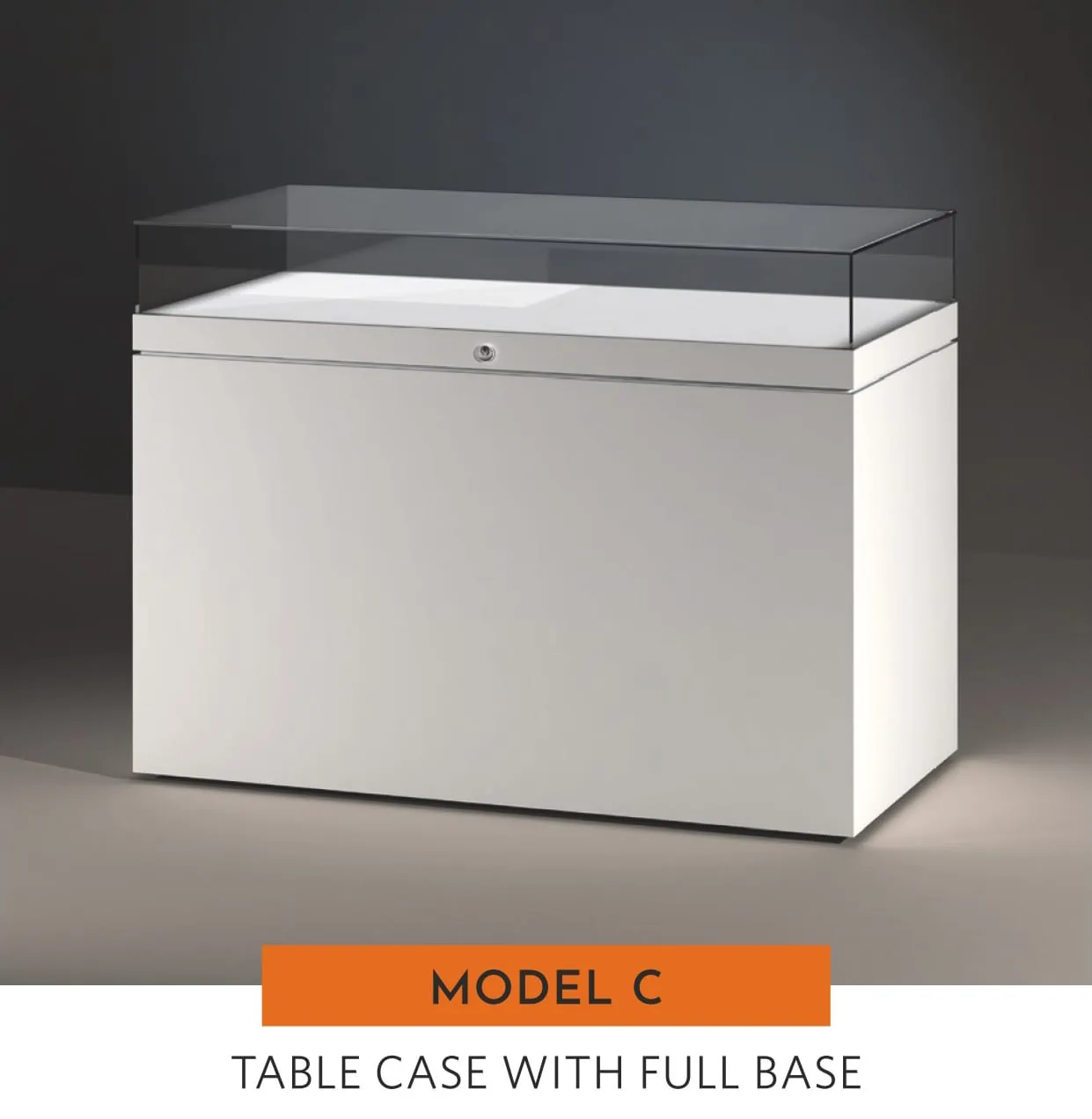

EXCEL LINE T – TABLE CASES
The EXCEL Line T – table display case series comes with a variety of different base options. Legs, full side panels, a full or a columnar base or an additional drawer are possibilities.
SAFETY FIRST
Your artifacts are protected by surface flush security locks.
RELY ON IT
The EXCEL Line T is made with a rigid base and an integrated glass top 60 mm (2,5”) high, light metal frame. The visible surfaces are painted in the standard color RAL 9002, off-white matt. The 3/4” thick display case inlay can be painted or covered in fabric. The standard dimensions are W x D x H = 48”x 24”x 36”
MAKE YOUR CHOICE
Variable case dimensions are available, as are custom-made finishes, based on the RAL scale.
EASY ACCESS
The glass top is made of 8 mm thick glass panels and can be conveniently opened and closed, utilizing a concealed gas spring system.
DIMENSIONS
standard: 46“x 24“x 36“ / 1220 x 610 x 914 mm
possible dimensions:
height: 20“– 47“ / 508 – 1194 mm
width: 16“– 71“ / 406 – 1803 mm
depth: 16“– 71“ / 406 – 1803 mm
glass cover height: 6“– 23“ / 152 – 584 mm
base height: 16“– 39“ / 406 – 991 mm
GLAZING
possible glazing: laminated safety glass
tempered safety glass
low iron / extra clear glass
antireflective glass
annealed glass
FEATURES
standard: base plate covered in fabric
optional: base plate painted in RAL
illuminated frosted glass base plate
hidden safety lock
LIGHTING
optional: fiber optics lighting
flexible light tubes
light box with LED-lights
OPENING
standard: piston-hinged glass hood
optional: the electric lift system
SPECIALS
optional: climate control
alarm technology
genuine wood veneer base
base with storage space
EXCEL LINE W – WALL CASES
The EXCEL Line W – wall case series features a special dust-proof construction. Dust-sensitive exhibit items, typically documents, paper items, and paintings, are perfectly stored. The design also allows for excellent
climate control. With shelving options, this case type can serve to display a wide range of collection items The variety of usage is unlimited.
SECURE EXISTENCE
Precise flush-mounted security cylinder locks protect the contents within this sophisticated design.
RELY ON IT
The case consists of a back element, and a glass hood made of 8 mm thick glass panels. This minimalist glass hood optimizes visibility while the back panel can be covered with fabric or painted. The visible surfaces are painted in the standard color RAL 9002, off-white matt.
OPENING WITH EASE
The entire glass front can be lifted off. On request, hinged and gas spring solutions are available.
DIMENSIONS
standard: 33“x 8“x 47“ / 813 x 203 x 1194 mm
possible dimensions:
height: 16“– 70“ / 406 – 1803 mm
width: 16“– 78“ / 406 – 1981 mm
depth: 6“– 16“ / 152 – 406 mm
GLAZING
possible glazing: laminated safety glass
tempered safety glass
low iron / extra clear glass
antireflective glass
annealed glass
FEATURES
standard: wooden base material painted in RAL
optional: backplane with textile character
illuminated frosted glass bottom
LIGHTING
standard: lightcase with fluorescent lamps
optional: lightcase with LED-lights
fibre optic light
OPENING
standard: glass front removable
optional: gas-pressure springs
SPECIALS
optional: climate control
alarm technology
wood veneer base
